Hydraulic Power Winch 20000 LB

20000 lb Reliable quality hydraulic power winch for truck recovery. Cable tensioner included!


Hydraulic power winch 20000lbs  , Extremely powerful and heavy weight winch for big truck recovery . Steel cable and cable tensioner and 4-way roller included, Oil hoses and vavles optional!

Features and Specifications:

PN: XM-HT005
Rated line pull---20000lbs( 9060kg)
Motor displacement----100ml/r
Oil flow----5~80L/min
Pressure----10MPa

Free spool clutch

Control box with switch( both wire and wireless control kits included)

Oil pump hose included
Gear reduction ratio----48: 1
Cable(Dia. *L)----(Φ 14mm*20m)

Cable Tensioner included

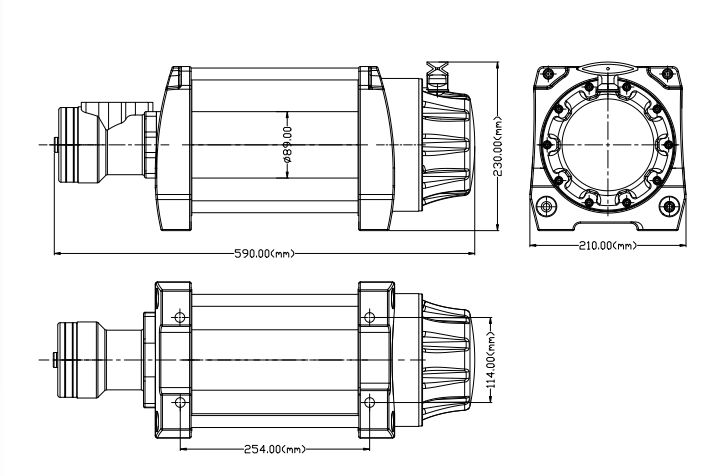

Drum size(Dia. *L)---(Φ 89mm*222mm)
Mounting bolt pattern----10"*4.5"(254mm*114.3mm)
