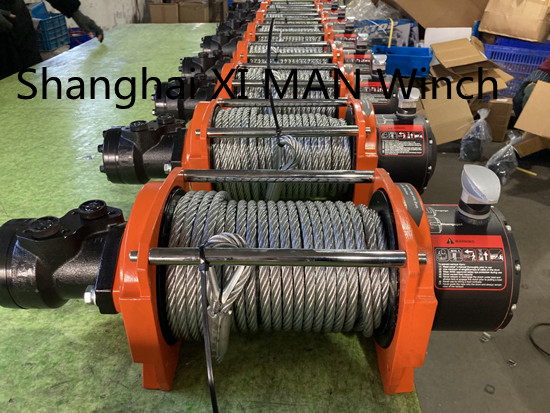

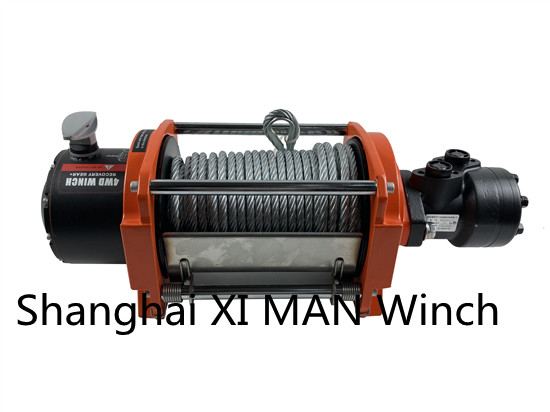

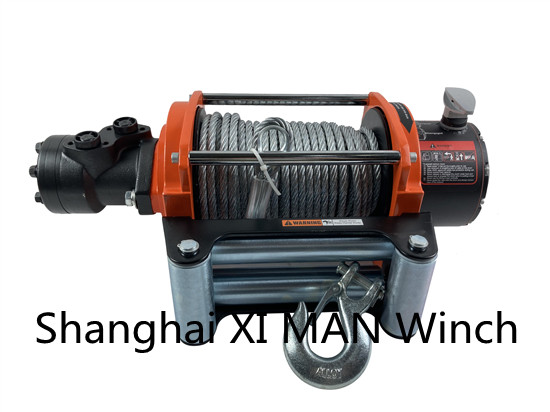

Hydraulic Power Winch 12000 LB

12000 lb Reliable quality hydraulic power winch for truck recovery.

Hydraulic power winch 12000lbs  Features and Specifications:

PN: XM-HT003
Rated line pull---12000lbs(5443 kg)
Motor displacement----65ml/r
Oil flow----5~45L/min)
Pressure----14MPa

Free spool clutch

Control box with switch( both wire and wireless control kits included)

Oil pump hose included
Gear reduction ratio----33: 1
Cable(Dia. *L)----(Φ 9.5mm*24.5m)

Cable Tensioner included
Drum size(Dia. *L)---(Φ 89mm*222mm)
Mounting bolt pattern----10"*4.5"(254mm*114.3mm)

Line Pull, Pressure; Flow, Speed(First layer)
Line Pull Pressure Flow Line speed
Ibs(kgs) (MPa) G/min(L/min) ft/min(m/min)
0 1.0 5.3(20) 7.2(2.2)
8000(3629) 6.0 7.9(30) 11.0(3.4)
10000(4536) 8.0 13.2(50) 18.0(5.6)
12000(5443) 10.0 15.9(60) 22.0(6.8)

Line Pull And Rope Capacity In Layer
Layer Rated Line Pull Ibs(kgs) Total Rope On Drum ft(m)
1 12000(5443) 19(6)
2 9800(4445) 42(13)
3 8300(3765) 68(21)
4 7200(3266) 92(28)

4 7200(3266) 92(28)
