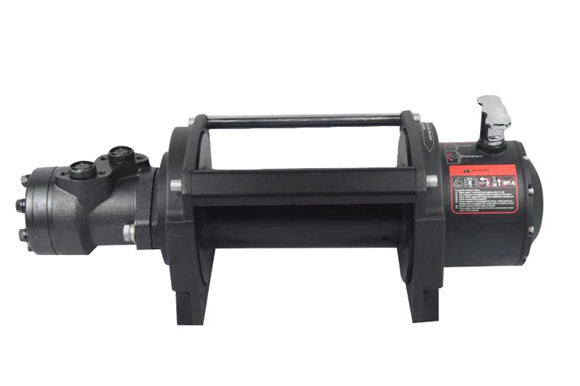

Hydraulic Power Winch 15000 LB

15000 lb Reliable quality hydraulic power winch for truck recovery.

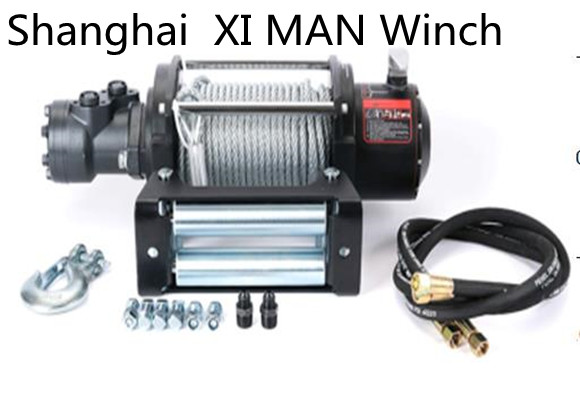

Hydraulic power winch 15000lbs , Flat tie bar can be OEM color and laser etached "Logo", Steel cable and cable tensioner and 4-way roller included, Oil hoses, control valves and much more optional!

 Features and Specifications:

PN: XM-HT004
Rated line pull---12000lbs(5443 kgf)
Motor displacement----65ml/r
Oil flow----5~60L/min
Pressure----13MPa

Free spool clutch

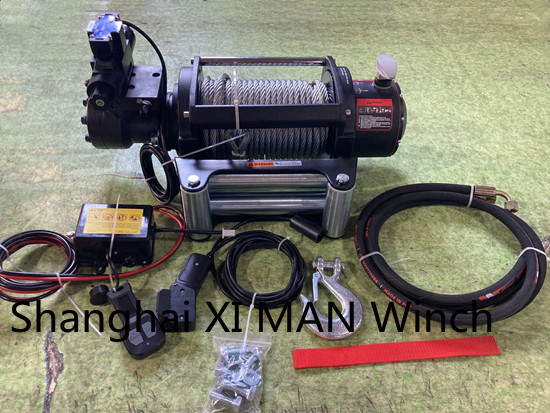

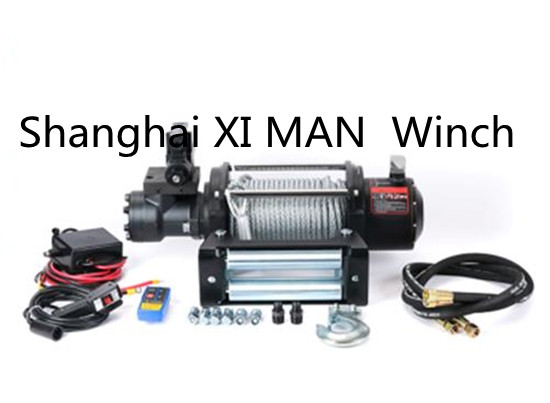

Control box with switch( both wire and wireless control kits included)

Oil pump hose included
Gear reduction ratio----33: 1
Cable(Dia. *L)----(Φ 12mm*24.5m)

Cable Tensioner included
Drum size(Dia. *L)---(Φ 89mm*222mm)
Mounting bolt pattern----10"*4.5"(254mm*114.3mm)

Pull, Speed, Pressure, Flow (First layer)



Line pull   lbs(kgs)

Pressure   Mpa(Psi)

Flow   G/min(L/min)

Line speed   ft/min(m/min)

0

2.0(290.1)

1.3(5.0)

1.6 (0.5)

5000(2268)

4.3(623.7)

2.6(10.0)

3.3(1.0)

10000(4536)

8.7(1261.8)

5.3(20.0)

6.6(2.0)

12000(5443)

10.0(1450.3)

7.9(30.0)

9.8(3.0)

15000(6804)

13.0(1885.4)

15.9(60.0)

19.7(6.0)

Line Pull And Rope Capacity Inlayer





Layer of wire rope

Rated line pull lbs(kgs)

Total rope on drum ft (m)

1

15000(6804)

18.0 (5.5)

2

12120(5498)

40.7(12.4)

3

10168(4612)

65.9(20.1)

4

8757(3972)

86.9(26.5)


4 7200(3
266) 92(28)
