Unique design UTV 4500 LB

Performance:               12 VDC

Single line rated pull:  4500lbs ( 2039kg)

Motor:                         2.2 hp permanent magnet sealed

Braking action:            Mechanical brake

Clutch:                         Sliding ring gear

Gear train :                  3 –stage planetary sealed

Gear ratio:                   158 : 1

Remote Switch:           12ft ,wire remote control with black handbar ,

         wireless remote control ready

Battery Leads:             6 Gauge ,(1.8m)

Fairlead:                      4-way roller fairlead

Steel cable:                 7/32”/43’ (13m )

Weight:                      36 pound  (16.5kg )

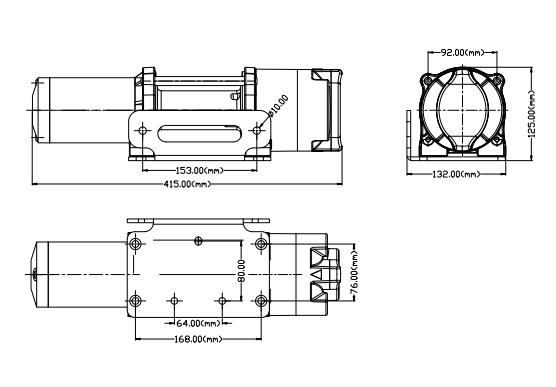

Overall dimension:  19.7” x 10.6” x6.8” (500mm x 270mm x 163mm)

Mounting bolt pattern:  30” x 6.59” (76mm x 167mm)

Line Speed And Amp Draw ( First Layer )

Pull by Layer

 layer/lbs(kgs)
