UTV 4000 XM-XU807

UTV 4000 LB WINCHXM-XU807
Classic designelectric winch for UTV & Side x Sides .When you are looking for ideal winch for yourUTV orLIGHT Side x Side Business .Our 4000lbs winch is your best choice !
Portable & compact design , high torque fast speed permanent magnet winch motor sealed , three planetary gear train ,fast line speed ,gear ratio: 136:1! all metal gears , run smoothly with small noise ,draw low amps .more efficient . Sealed gear box . ATV winch accessories --- fairlead ,remotes ,separated solenoid power box and wires with cover included .Both steel cable and synthetic rope are dependable on the requirements
OEM service is acceptable all the time !

UTV 4000LBS WINCH FEATURES AND SPECIFICATIONS

Part Number : XM-XU807
1. pulling rate: 4000lbs. (1812 kgs) single-line
2.motor : DC 12V1.6hp/ 1.2kwpermanent magnet
3.gear ratio: 136:1 three stage planetary gear train
4.clutch: cam activated
5.brake : mechanical
6.switch : handlebar mount mini-rocker wire control and wireless remote control included or Optional
7.fairlead : aluminum hawse for synthetic rope ,4-way roller fairlead for steel cable
8.Wire Rope: 50', 6.5mm diameter (15m, 6.5mm diam)

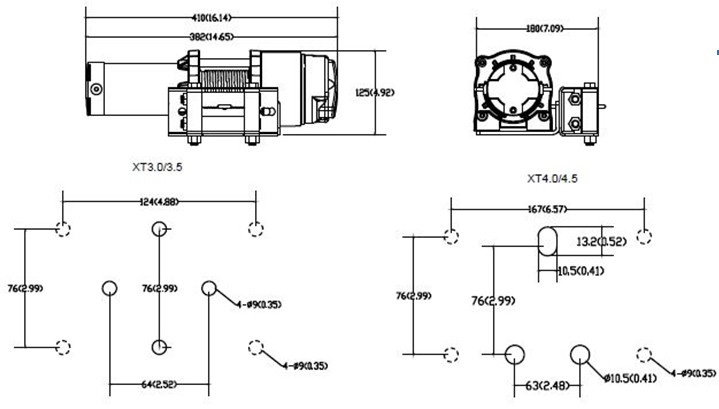

9 .Mounting Bolt Pattern: 3.0’ x 6.6’(76 X 168mm)
10. wirings ,solenoid (IP67) INCLUDED

Optional kits
Snatch block
winch cover
gloves
hook & strap

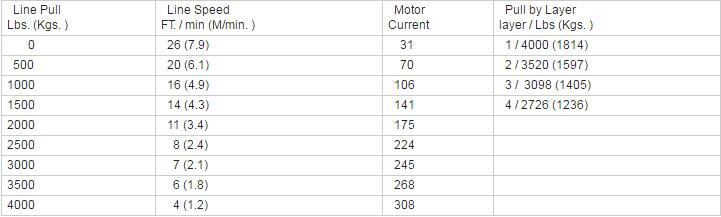

Performance Chart
