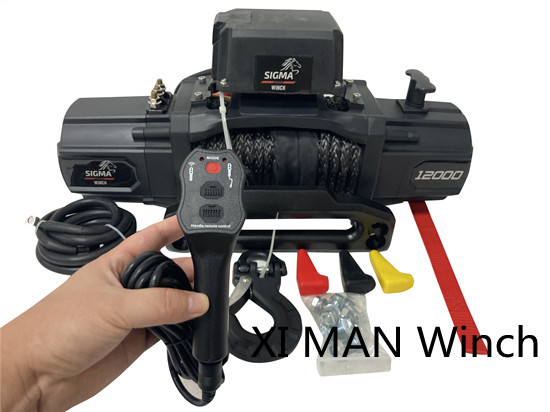

DC 12V Premium Electric Winch 12000LBS
DC 12V Premium Electric Winch 12000LBS
IP67 4X4Truck & Trailer Recovery
Ultimate performance winch for 4x4 off road riders .
New unique surface –look & symmetrical design ,All aluminum cover on this latest winch model with all waterproof .Fast speed & high torque & big horsepower sealed series wound motor . Extra spare part of control box design .All steel gears sealed with 1.5 modular .Gear ratio : 235: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature “Engage “and “Disengage” clutch run smoothly and quietly. All-in-one remote control.
12,000 LBS Features and Specifications :
PN :XM-DYU001
Performance: 12 V or 24 V DC
Single line rated pull:12,000lbs ( 5436kg)
Motor:6.6hp/5.0kw series –wound , fast speed,sealed
Braking action: Mechanical
Clutch:Sliding gears
Gear train :3 –stage planetary,modules of 1.50 big gears ,steel gears ,smooth weld planetary plate
Gear ratio: 235 : 1
Remote Switch:12ft, all-in one handle cord remote control , Control cable can be disassembled .
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72”(1.83m)
Fairlead:steel hawse
Drum:2.5”/8.8”(64mm x 224mm)
Synthetic rope: 3/8” x 85” (Ф9.5 x 27 m )
Weight: 57 pound(26kg )
Overall dimension:23.9” x 10.6” x 7.0” (607mm x 268mm x 179mm)
Mounting bolt pattern:10” x 4.5” (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )
| Line Pull | lb | NO | 4000 | 6000 | 8000 | 10000 | 12000 |
| kg | LOAD | 1812 | 2718 | 3624 | 4304 | 5436 | |
| Line speed | ft/ min | 43.2 | 15.8 | 8.2 | 6.96 | 6.3 | 5.5 |
| m/ min | 13.2 | 5.22 | 2.68 | 2.3 | 1.6 | 1.39 | |
| Motor current | Amps | 63 | 115 | 170 | 280 | 320 | 390 |
Line Pull And Cable Capacity
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | lb | 12000 | 9210 | 8030 | 6894 |
| kg | 5436 | 4186 | 3642 | 3127 | |
| Length of cable on drum | ft | 16.3 | 37 | 61 | 85.3 |
| m | 5.0 | 11.2 | 18.6 | 26.00 |
