IP68 truck winch 12500 lb

IP68 4X4Truck & Trailer Recovery
Ultimate performance winch for professional 4x4 off road riders .

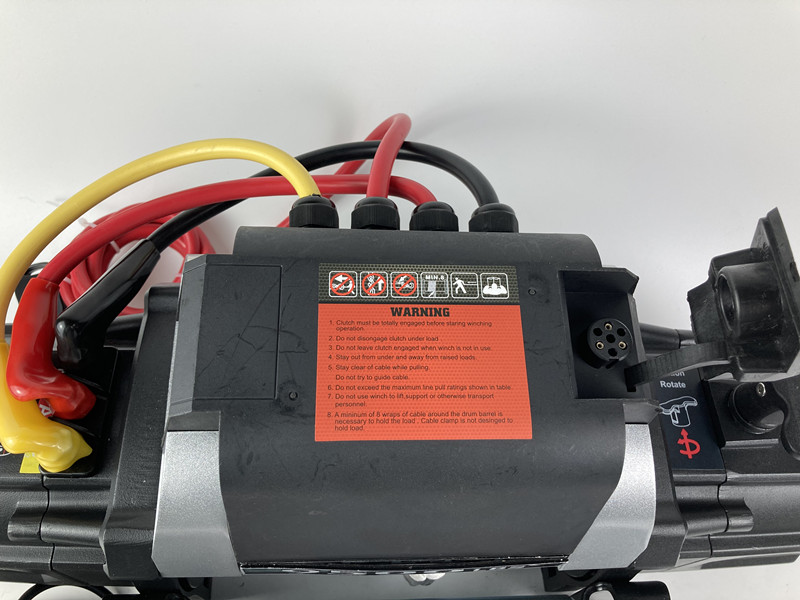

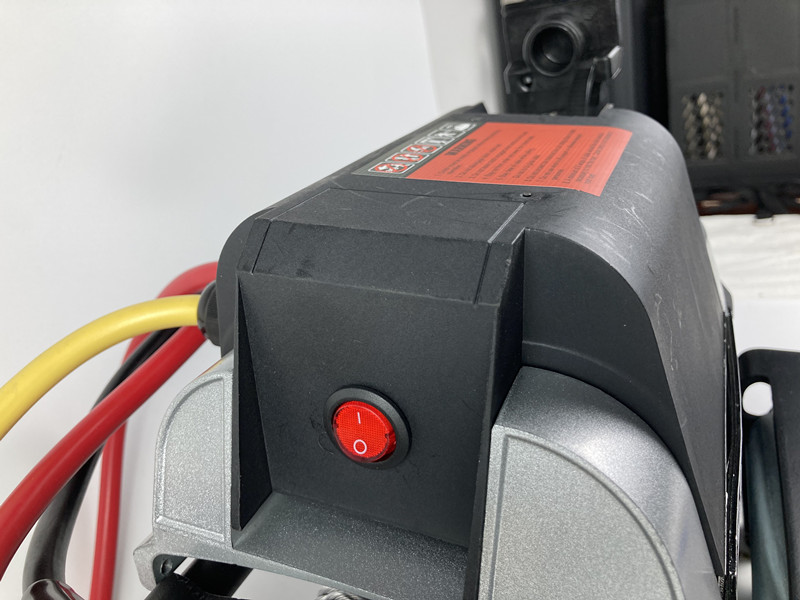

New unique surface –look & symmetrical design ,All aluminum cover on this latest winch model with all waterproof .Fast speed & high torque & big horsepower sealed series wound motor . An extra on-off switch integrated control box design, plug-in wired remote control as the same as " Warn's " .All steel gears sealed with 1.5 modular .Gear ratio : 235: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature “Engage “and “Disengage” clutch run smoothly and quietly

It's an ideal revovery winch for high-end off-road drivers!

12,500 LBS Features and Specifications :
PN :XM-DY603
Performance: 12 V or 24 V DC
Single line rated pull:12,500lbs ( 5663kg)
Motor:6.6hp/5.0kw series –wound , fast speed,sealed
Braking action: Mechanical
Clutch:Sliding gears
Gear train :3 –stage planetary,modules of 1.50 big gears ,steel gears ,smooth weld planetary plate
Gear ratio: 235 : 1
Remote Switch:12ft, wired remote control
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72”(1.83m)
Fairlead:4-way roller
Drum:2.5”/8.8”(64mm x 224mm)
Synthetic rope: 3/8” x 85” (Ф9.5 x 25 m )
Weight:38kg

Line Speed And Amp Draw ( First Layer )

Line Pull And Cable Capacity
