15000 heavy duty winch

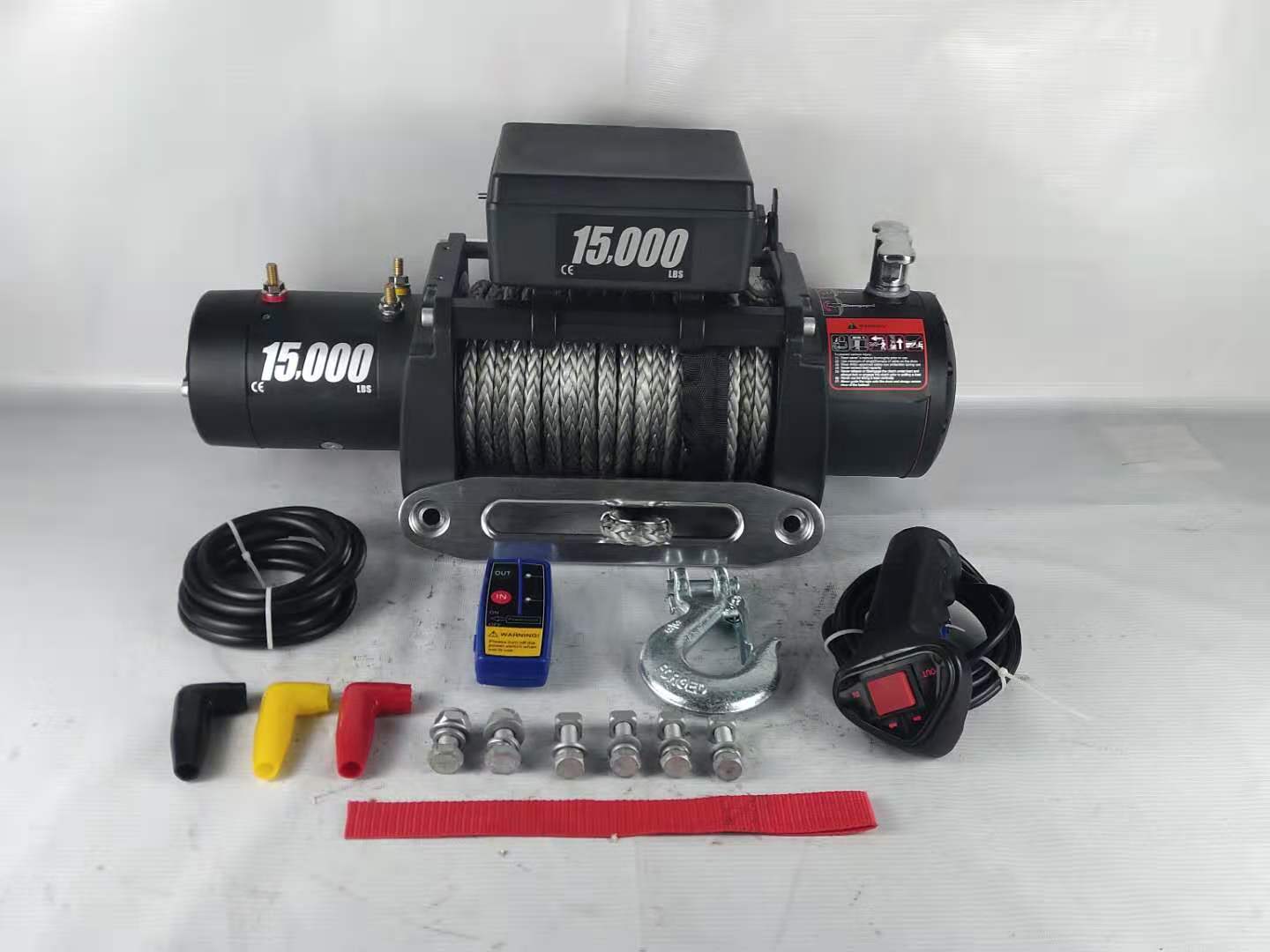

HEAVY WEIGHT winch designs to big trucks and trailers Brutal torque & extreme horsepower series wound motor-sealed . More stronger two supporting aluminum brackets with waterproof o-rings . Sliding ring gear with classic design to make clutch  “IN” or “ OUT ” easily .All steel gears  to increase the strength and durable of them and run smoothly and quietly . 500 A  IP67 solenoid , 12ft wired remote control ,wireless kits included, 1/2 hook & strap with 4 –way roller .

15000 lb Winch Features and Specifications :

PN:                          XM-UP004

Performance:                12 V or 24 V  DC

Single line rated pull:   15000lbs ( 6795 kg)  single line

Motor:                           7.2hp/5.1kw series –wound

Braking action:             Automatic locking with motor

Clutch:                         Rotating and sliding ring gear

Gear train :                  3 –stage planetary with steel gears

Gear ratio:                   372: 1
Remote Switch:           12ft ,wired cord control and wireless remote control included

Battery:                       Recommended:650CCA minimum for winching

Battery Leads:             2 Gauge 72”(1.83m)

Fairlead:                      aluminum

Steel cable:                 10 x 26 m

Weight:                       33kg

Overall dimension:      22.9” x 6.7” x 7.2” (582mm x 170mm x 182mm)

Mounting bolt pattern:  10” x 4.5” (254mm x 114.3mm)

Line Speed And Amp Draw ( First Layer )

Line Pull And Cable Capacity
