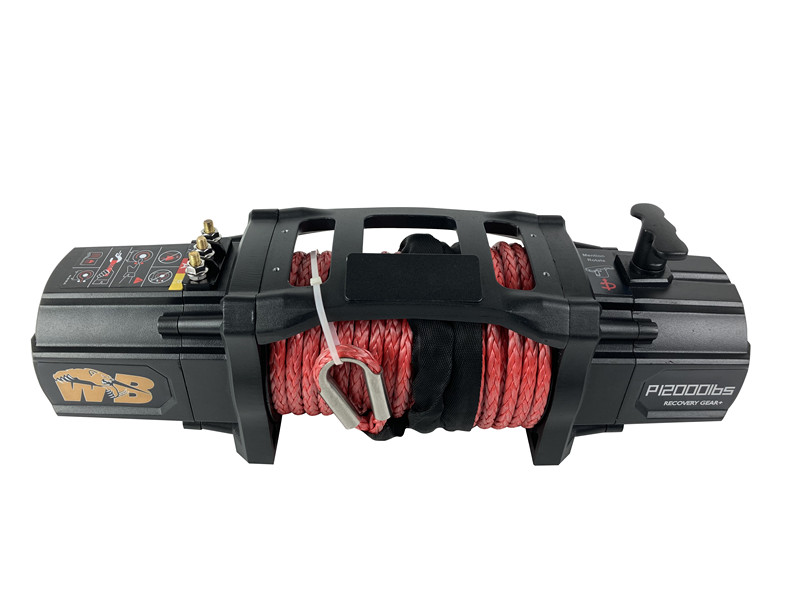

IP 68 synthetic rope 10000 lb winch

IP68 4X4Truck & Trailer Recovery
Ultimate performance winch for 4x4 off road riders .

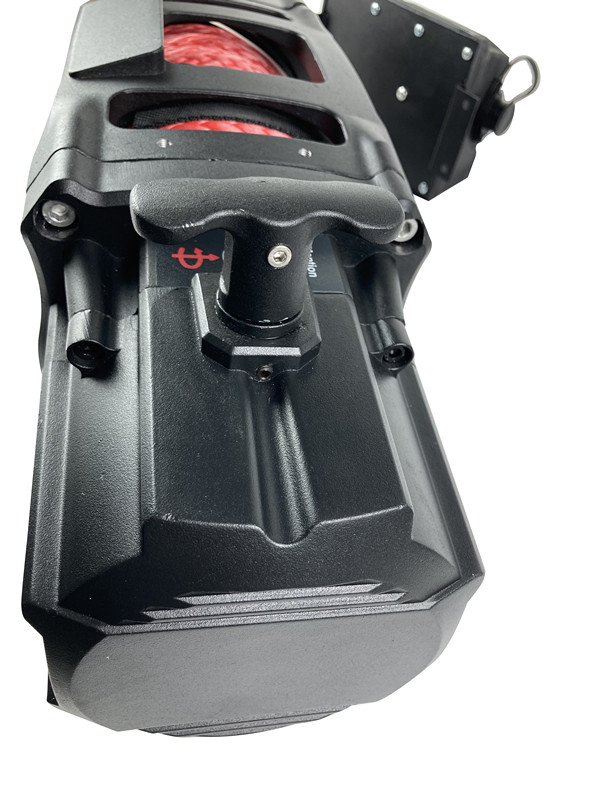

New unique surface –look & symmetrical design ,All aluminum cover on this latest winch model with all waterproof .Fast speed & high torque & big horsepower sealed series wound motor . An extra spare part of control box design .All steel gears sealed with 1.5 modular .Gear ratio : 202: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature “Engage “and “Disengage” clutch run smoothly and quietly

10,000 LBS Features and Specifications :

PN :XM-XU602
Performance: 12 V or 24 V DC
Single line rated pull:10,000lbs ( 4530kg)
Motor:5.8hp/4.2kw series –wound , fast speed,sealed
Braking action: Mechanical
Clutch:Sliding gears
Gear train :3 –stage planetary,modules of 1.50 big gears ,steel gears ,smooth weld planetary plate
Gear ratio: 202 : 1

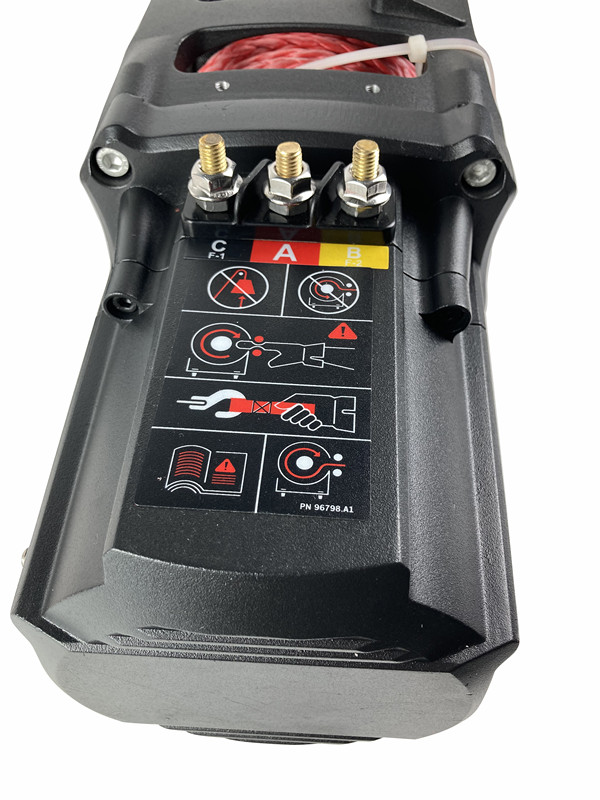

Remote Switch:12ft, all-in one handle cord remote control , Control cable can be disassembled .
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72”(1.83m)
Fairlead:steel hawse
Drum: 2.5”/8.8”(64mm x 224mm)
Synthetic rope: 3/8” x 85” (Ф9.5 x 26 m )
Weight: 27kg
Overall dimension:23.9” x 10.6” x 7.0” (607mm x 268mm x 179mm)
Mounting bolt pattern:10” x 4.5” (254mm x 114.3mm)
Customize

Line Speed And Amp Draw ( First Layer )

Line Pull And Cable Capacity
