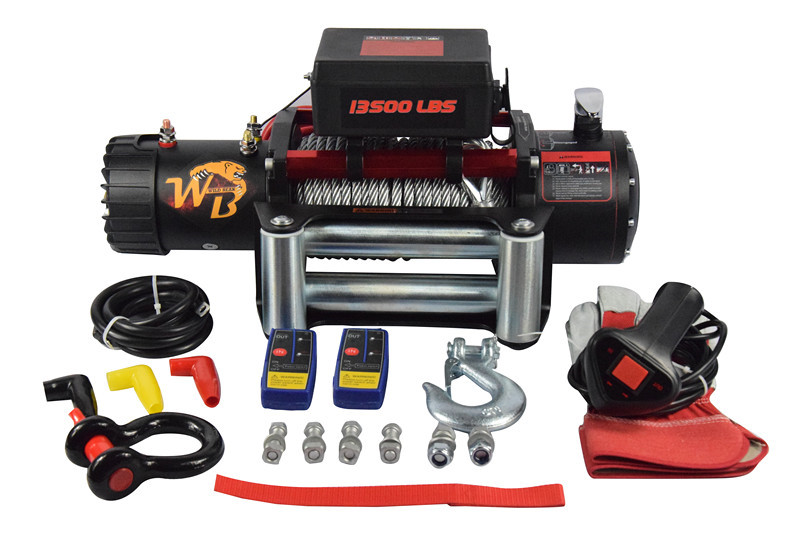

13500 lb 4x4 truck winch

Classic design with heavy duty 13,500 lb winch .Extremely high torque series would motor sealed ,mechanical design brake . sealed completed gear box with all steel gears , 265.2:1 gear ratio . steel cable and two wireless remote control and wired cord remote,waterproof .Reliable solenoid (450 A ,IP67 ) ,Separated control box .

OEM service is acceptable all the time !

Features and Specifications :

PN:              XM-EX002

Performance:                12 V or 24 V  DC

Single line rated pull:   13,500lbs ( 6115.5kg)

Motor:                          6.65hp/5.0kw series –wound

Braking action:            Automatic locking with motor

Clutch:                         Sliding ring gear

Gear train :                  3 –stage planetary steel gears

Gear ratio:                   265.2: 1                                                                                                    Remote Switch:          12ft wired remote control with two wireless remote controls

Battery:                       Recommended:650CCA minimum for winching

Battery Leads:           2 Gauge 72”(1.83m)

Fairlead:                    4-way roller fairlead

Steel cable:               Ф10 x 82 ft (Ф10  x 25m )

Weight:                     84 pound  (38kg )

Overall dimension:    21.3” x 8.6” x 6.3” (550mm x 220mm x 160mm)

Mounting bolt pattern:  10” x 4.5” (254mm x 114.3mm)

Line Speed And Amp Draw ( First Layer )

Line Pull And Cable Capacity
