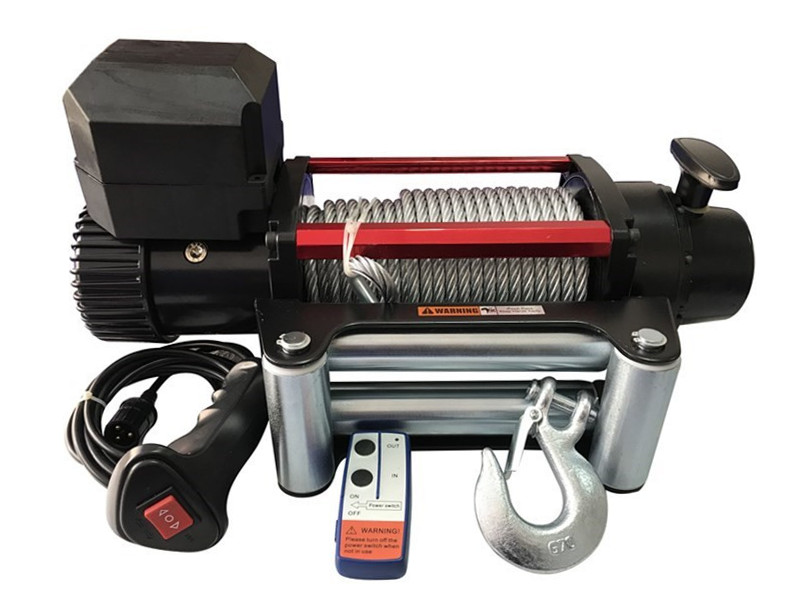

4x4 truck Electric Winch

Features and Specifications :

PN:                   XM-DYW009

Performance:               12 VDC

Single line rated pull:  12,000lbs ( 5436kg)

Motor:                          6.5hp/5.0kw series –wound sealed

Braking action:            Automatic locking with motor

Clutch:                         Pulling and Turning

Gear train :                  3 –stage planetary

Gear ratio:                   216: 1

Remote Switch:           11ft ,wire remote control with black handbar ,

         wireless remote control included

Battery:                        Recommended:650CCA minimum for winching

Battery Leads:             2 Gauge 72”(1.83m)

Fairlead:                      4-way roller fairlead

Steel cable:                Ф9.5 x 72 ft (Ф9.5 x 24 m )

Weight:                       78 pound  (35kg )

Overall dimension:       21.3” x 10.3” x 6.3” (540mm x 260mm x 160mm)

Mounting bolt pattern:   10” x 4.5” (254mm x 114.3mm)

Line Speed And Amp Draw ( First Layer )

Line Pull And Cable Capacity
