XM-UX701

Compact & Portable Utility Winch  XM-XU701
Utility 2000lbs designs for light ATV small trailer and snowplow ,much more wide application in the daily life ! Reliable permanent magnetwinch motor sealed , 153: 1 single gear-drive .Brake by dynamic , pull and turnclutch handle for “ Engagement “ or “ Disengagement”. Both wire and wirelessand wired remote control available . Wire covers to protect wires from wear andtear .


Part number: XM-XU701
Rated line pull: 2000 lbs., (906kg) single-line ,4000lbs in pulley block
Motor: 12V DC 0.9HP Permanent Magnet motor
Remote Control: Remote Switch, 12’ (3.7m) lead.
Wireless Remote Control: Included or Optional
Geartrain: Single Stage Planetary.
Gear Ratio: 153:1
Clutch (freespooling): Split Ring Gear
Brake: dynamic
Drum Diameter/Length: 1.24’’/2.80’’ (31.5mm/71mm)
Wire Rope: 32.2’, 5/32’’ diameter ( 9.2m, 4.0 diameter)
Fairlead: Roller
Mounting Bolt Pattern: 3..13”(79.5mm)

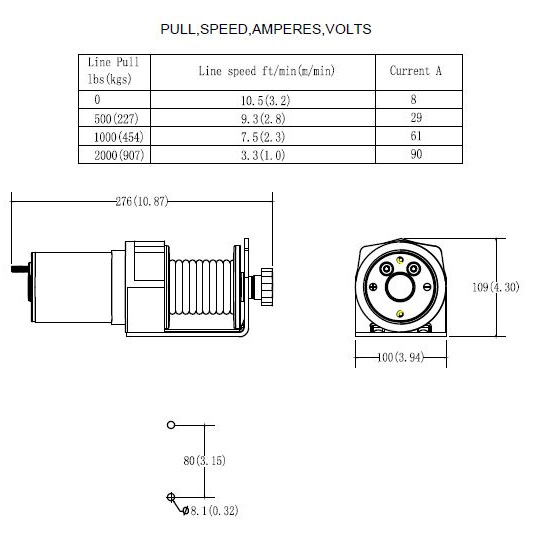

Winch Dimensions ( L x W x H ): 10.95'' x 3.94'' x 4.30'' (278x 100 x 109mm )
Packing Dimensions( L x W x H ): 15.7’’x 7.9'' x 8.7'' ( 400 x 200 x 220mm )
Shipping Weight: 7kg ( 15.5bs)
